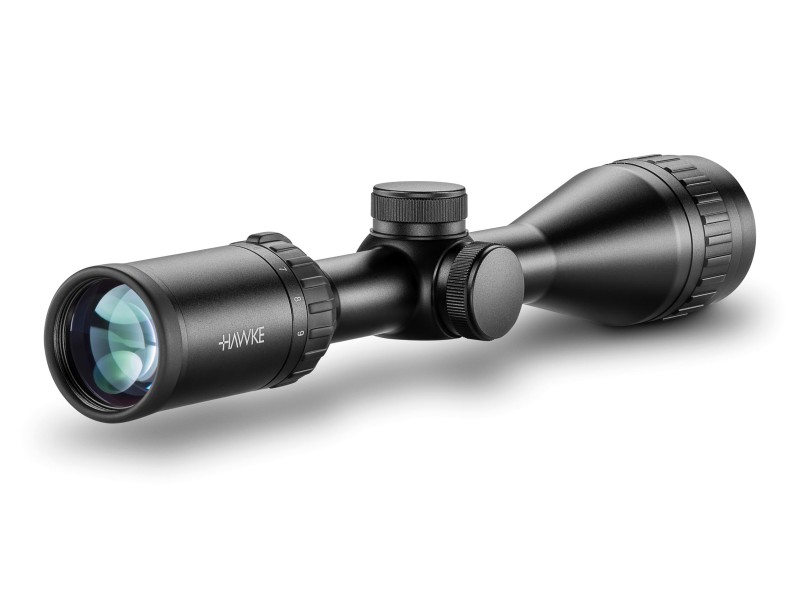

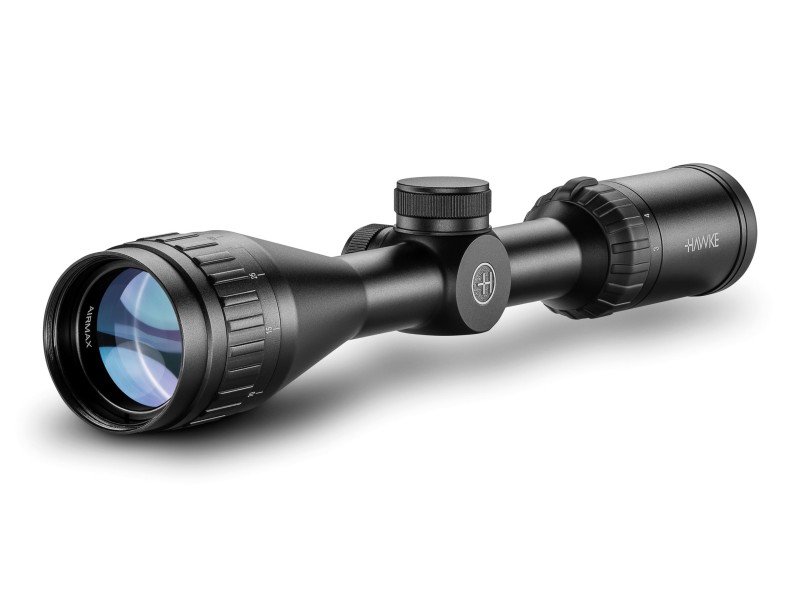

HAWKE AIRMAX 3-9x40 AO - AMX Rifle Scope
The Airmax series of rifle scopes is primarily intended for shooting with air and small caliber rifles at medium to long distances. Also made for more powerful air rifles. The AMX reticle is developed for precise shooting.
Article code:
1099
Price with VAT:
279,00 €
Stock
Notify me when item is available:
Manufacturer | Hawke |
---|---|
Series of rifle scopes | Hawke Airmax EV |
Variable magnification | Yes |
Minimum magnification | 3x |
Maximum magnification | 9x |
Objective diameter | 40 mm |
Max. exit pupil diameter | |
Min. exit pupil diameter | |
Maximum eye relief | 80 |
Minimum eye relief | 80 mm |
Maximum field of view | 14.7 m / 100 m |
Minimum field of view | 4.9 m / 100 m |
Twilight factor | |
Light transmission | |
Reticle position | 2nd focal plane |
Reticle adjustment click value | 7mm/100m - 1/4MOA |
Reticle adjustment range | |
Type of turrets | Tactical |
Revolution offset | |
Number of turret revolutions | Multiple revolutions |
Direction of turret rotation | Counter-clockwise |
Reticle illumination | |
Color of illumination | |
Daytime reticle illumination | No |
Automatic shut-off | - |
Parallax adjustment | |
Adjustable parallax | Yes |
Parallax adjustment range | 9 m - infinity |
Diopter adjustment | |
Fast focus adjustment | Yes |
Lens coatings | Multi-coated - everywhere |
Water resistance | Yes |
Fog resistance | Yes |
Shock resistance | Yes |
Built-in rangefinder | No |
Temperature range | |
Filled with | Nitrogen |
Length | 320 mm |
Tube diameter | 1' |
Objective lens diameter | |
Eyepiece diameter | |
Length for installation | |
Mounting rail | No |
Weight | 522 g |
In production since | 2014 |
Warranty | 10 years |
Origin | China |
AMX reticle
AMX and AMX IR etched glass is based on a 10x Mil Dot reticle spacing. AMX offers multiple aiming points which are useful in shooting with air rifles with round capacities.
The spacing at half mil dots on the lower post provides larger aiming points for long shots.
Horizontal bars are calculated at distances of 0.5, 1.5, 2.5, 3.5, and 4.5 mil. Hollow posts are divided into mil distances and can be used for holdovers.
